Support of new
WLAN standards
Fast and safe
roaming
Central
management

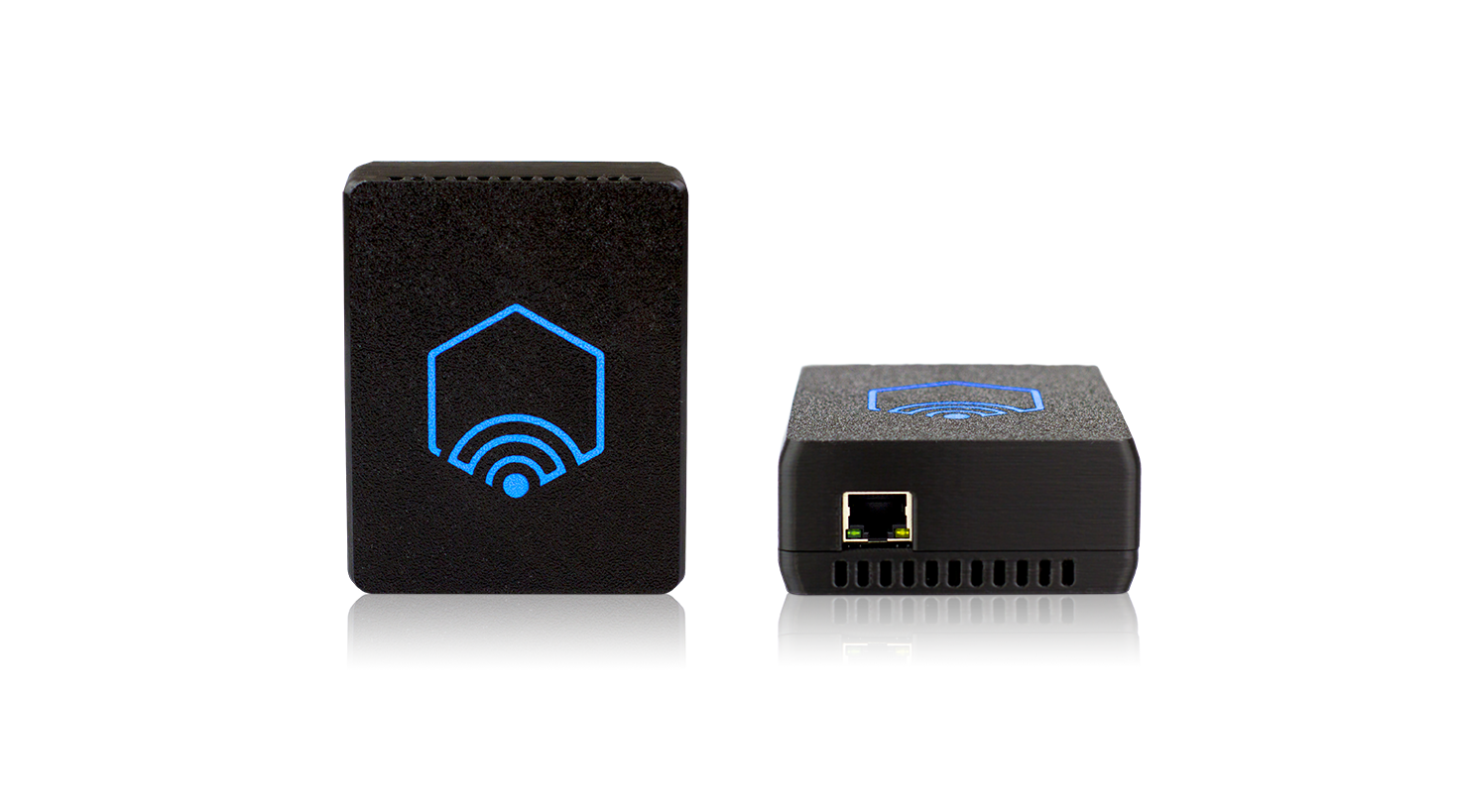

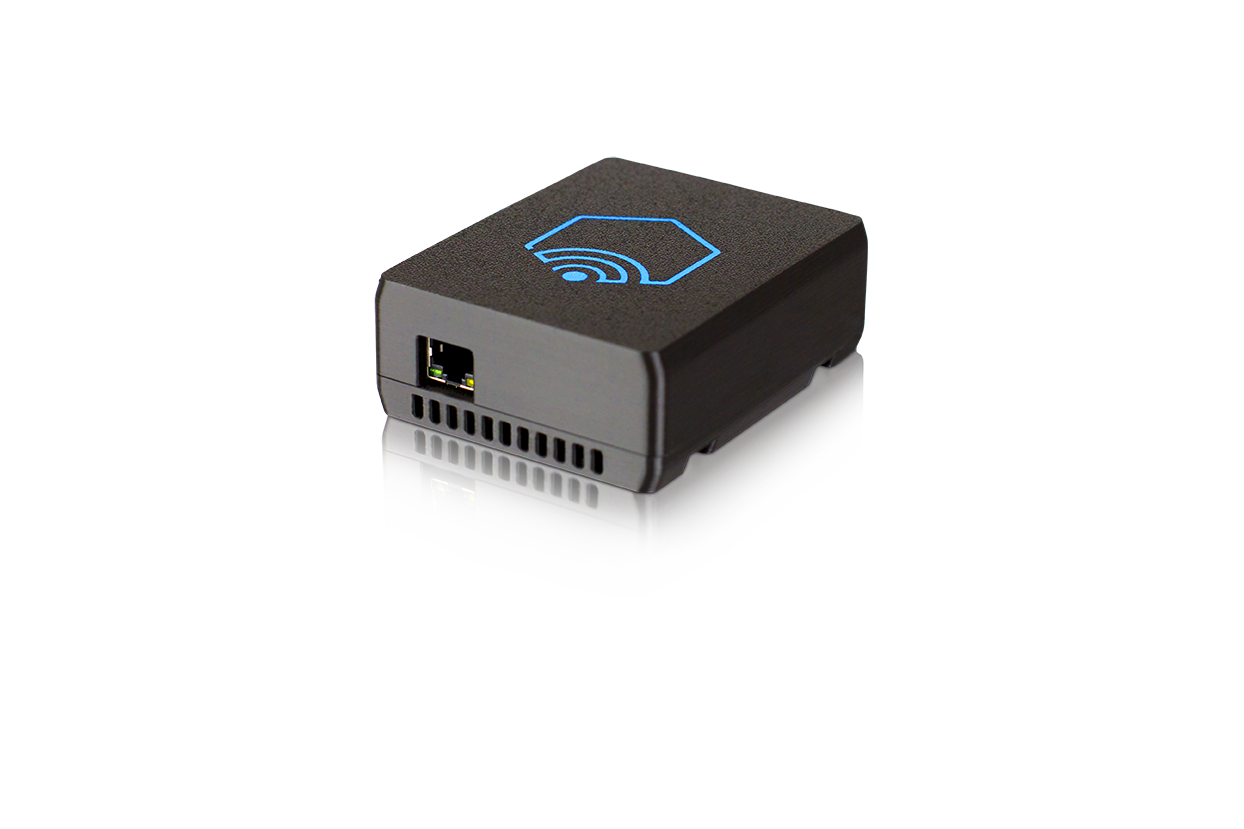

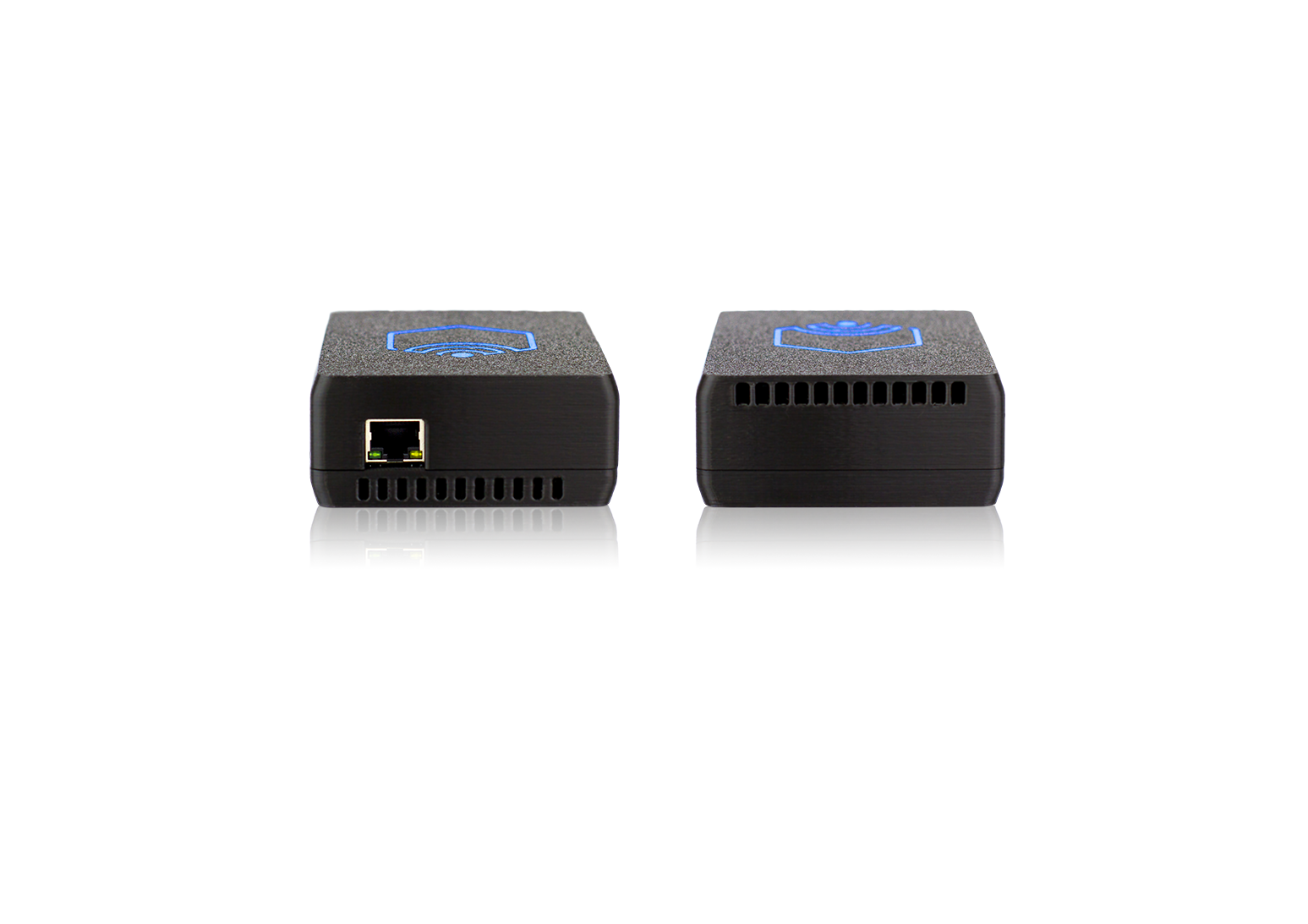

ELVN-R
Full warehouse automation and security finally go hand in hand.
With our latest ELVN-R you no longer have to compromise between using virtually any AGV device and ensuring bulletproof protection for your sensitive company information.
An increasing number of logistics companies and businesses with large warehouses are adopting various AGV devices, such as automatically controlled forklifts, and for good reason - their efficiency and reliability are unmatched in today's fast-paced world.
However, the manufacturers of these AGV devices have not been able to provide a solution for connecting them to a well-secured WiFi network, despite the fact that a stable connection is crucial for their proper functioning. Unfortunately, the inadequate security of existing wireless networks can pose a significant risk to the company.
The ELVN-R , developed by us, offers a highly effective solution for anyone using or considering automated devices in their business.
Until now, AGV users were forced to use WiFi networks with lower security (often WPA/WPA2-Personal) because connecting devices, such as automated forklifts, to networks with higher security caused roaming outages. In production-focused companies, such outages were considered more problematic than the issue of insufficient security, even though it posed a risk of attacks on the entire company network.
Even using separate virtual networks (VLANs) for automated devices, isolated from the rest of the corporate network, did not provide a sufficient solution. The risk of attacks on the machines and their servers remained.
The ELVN-R device effectively solves these problems. It acts as a bridge between an automated device (e.g., an automated forklift) and a network with the highest security (WPA/WPA2-Enterprise). This connection not only significantly enhances security but also ensures complete stability, eliminating any operational disruptions in the company or warehouse.
ELVN-R can be easily managed by the commonly used MDMs (Mobile Device Management) and we continuously provide regular updates to keep it up-to-date and secure. Lifetime support is also guaranteed.
System
| CPU | Quad core 64-bit ARM Cortex-A53, 1.4GHz |
|---|---|
| MEMORY | 1 GB DDR4 (optionally 2 GB) |
| STORAGE | 8 GB eMMC flash |
Security
| SECURITY METHODS | WPA2 Personal a Enterprise, WPA31 |
|---|---|
| AUTHENTICATION | 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/MASCHAPv2 |
| ENCRYPTION | 64-bit a 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP |
POWER SUPPLY
| POWER SOURCE | 24 V passive PoE (optional IEEE 802.3af/at) |
|---|
Enviromental
| DIMENSION | 97 mm x 80 mm x 34 mm |
|---|---|
| WEIGHT | 120 +/- 1 g |
| OPERATING TEMPERATURE | 0 °C až +60 °C |
| OPERATING HUMIDITY | 50% to 90% RH non-condensing (at temperatures from 25°C to 35°C) |
| DURABILITY | Multiple drops on concrete from a height of 1.8m, across the entire operating temperature range |
Communication
| WLAN | Standardy: IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax 1 Radio: 2x2 MU-MIMO, 2 x 3 dBi internal antenna Data Transfer Rate: Up to 866.7 Mbps (5 GHz), up to 300 Mbps (2.4 GHz), up to 2402 Mbps (IEEE 802.11ax1) Operating Channels: Channel 1 - 13 (2412-2472 MHz), Channel 36 - 165 (5180-5825 MHz) Channel Width: 20, 40, 80, 1601 MHz |
|---|---|
| LAN | 10/100 Mbps Ethernet port |
| BLUETOOTH | Bluetooth 4.2 (optional 5.11) |
| INTERNET PROTOCOL | IPv4 a IPv6 |
Software
| OPERATING SYSTEM | Ubuntu Linux LTS (optional Android 8.1 Oreo2) |
|---|---|
| MDM SUPPORT | SOTI MobiControl (pre-installed agent3) |
Package Contents
 |
Main Unit |
| Mounting Kit | |
| 24 V passive Gbit PoE injector | |
| DC power connector (optional DC power cable, 1.2 m) |
1Future hardware revisions will be supported.
2Supported only in the variant with 2GB RAM.
3Specific version can be installed upon request. The latest available version is installed by default.
